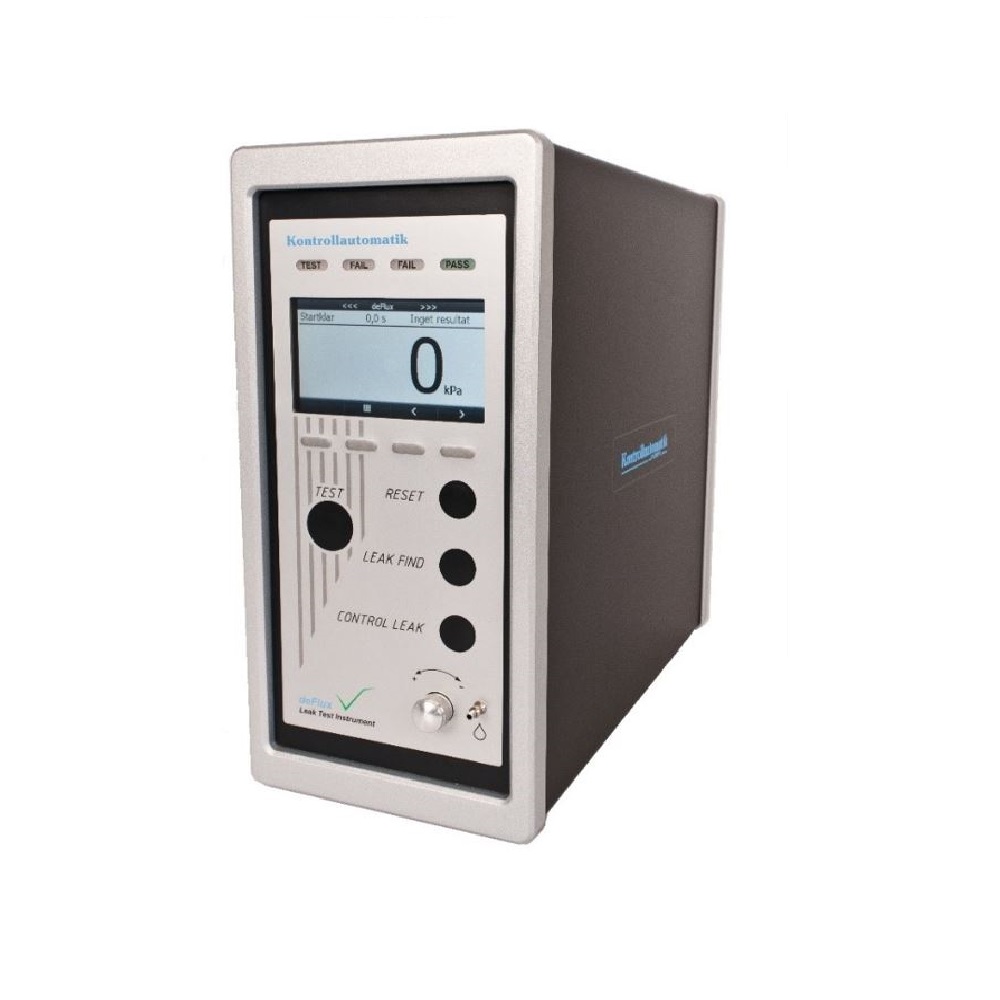

Leak test instrument with color display, touch control and real time display of the measurement sequence and active graphs and schemas.
deFlux
The operator interface has been updated with color display, touch control, real time display of the measurement sequence and active schemas and graphs.
Remote control is made possible through Siemens Smart Service.
The instrument is available in a multitude of configurations, for example flow measuring, differential pressure measuring and absolute pressure measuring. Media is air, overpressure or vacuum.
| Ranges of leak measurement | -250 Pa to 250 Pa (dpt) |
| Pressure range(s) | -100 to 0 kPa (Vacuum) 0 to 800 kPa (Overpressure) |
| Measuring possibilities | Differential pressure, Mass-flow, diFlow, Pressure increase, Vacuum |
| Communication | Industrial Ethernet, S7 com, IO, USB RS232(o), TCP/IP(o), ProfiNet(o) |
| Interface | 4,3” TFT Display, Color and Touch |
| Operational Smart Solution | Sm@rtServer / Sm@rtClient |
| Dimensions H x W x D | 322 x 150 x 380 mm |
| Weight | Approx 12 kg |
| Power source | 100 - 250V, 50 - 60Hz |
| Air supply | 600 - 900 kPa |
| Operating temperature | 5 to 40 °C |
| Languages | English(US) and Swedish, (Others on the way) |
| Display Unit | kPa, Bar, Psi, mm3/s, cm3/m |
- Features & Benefits
- High accuracy
- DiFlow® configuration
- Easy to use
- Color Touch Screen
- Multiple measurement types
- Leak find function
- Easy to set up
Max Pressure
Air Proof
Liquid Proof
Bubble test can be replaced with this instrument.
| Vacuum | Overpressure | |
|---|---|---|
| Short description | V | O |
| Range | -100 to 0 kPa | 0 to 800 kPa |
